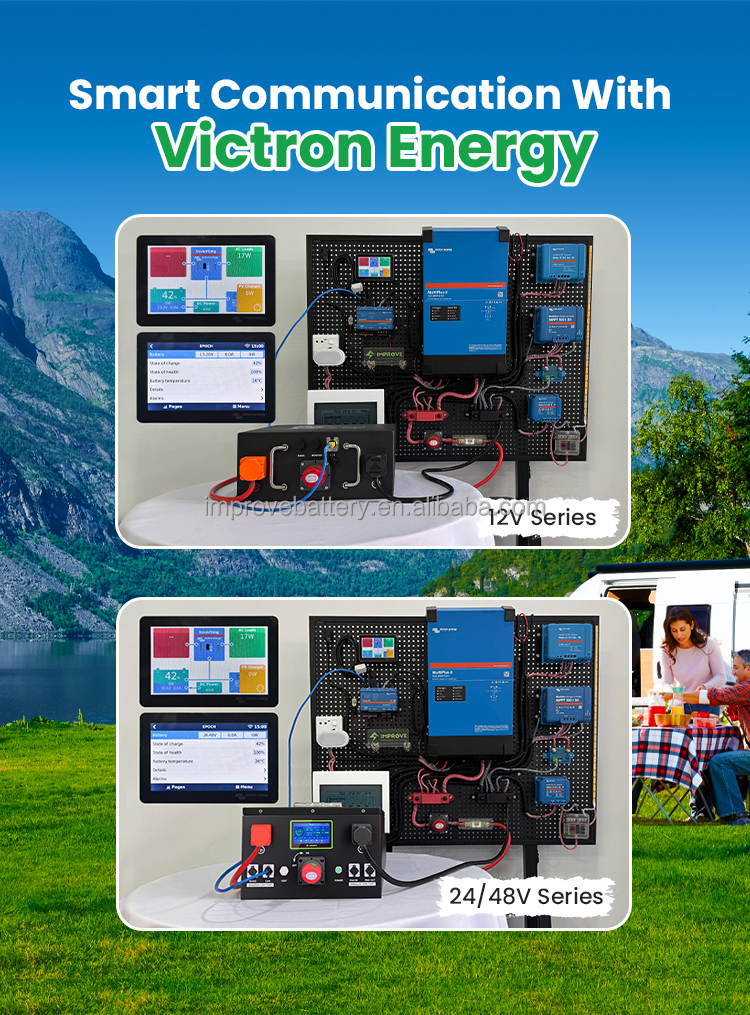

IMP-RV12 Series: Victro* Energy
IMP-RV24/48 Series:

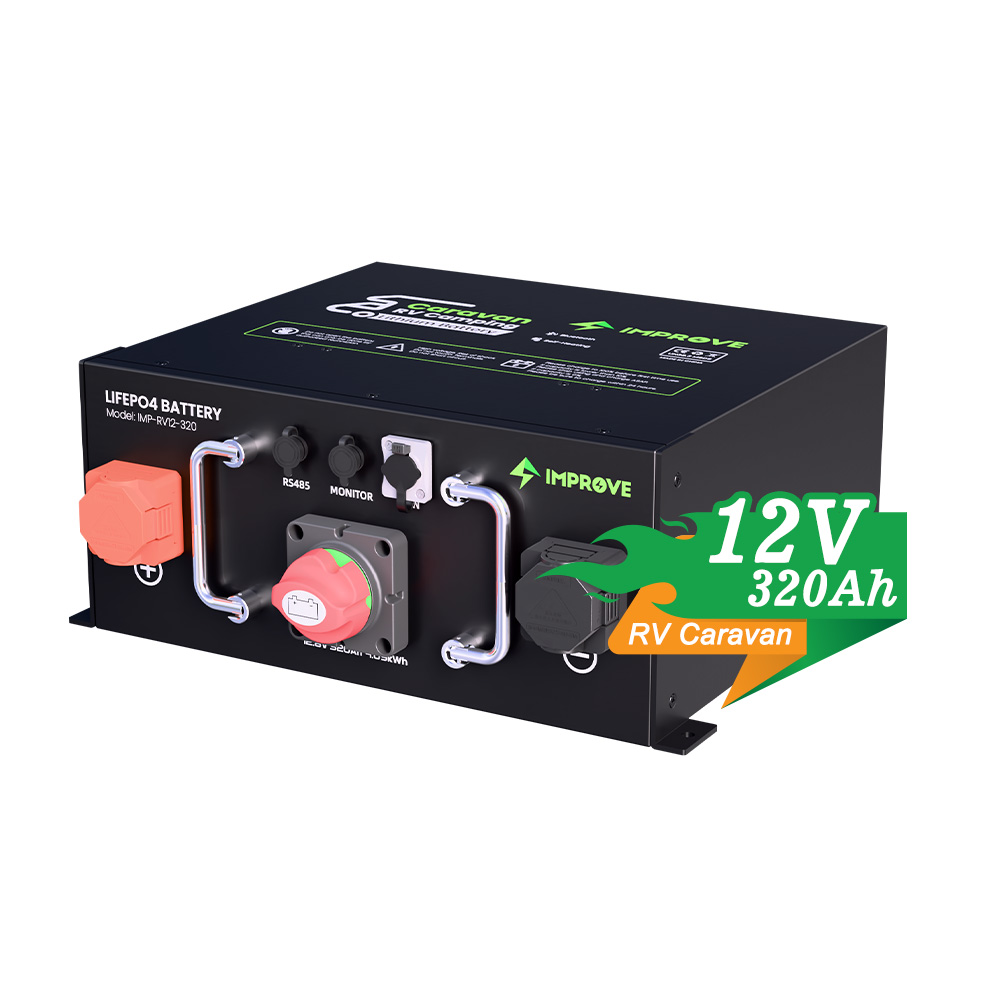

| Caravan RV LiFePO4 Battery (Support Customized Capacity / Size) | ||||
|---|---|---|---|---|
| Battery Module | IMP-RV12-320 | IMP-RV24-320 | IMP-RV48-100 | IMP-RV48-200 |
| Nominal Voltage | 12.8V | 25.6V | 51.2V | 51.2V |
| Nominal Capacity | 320Ah | 320Ah | 100Ah | 200Ah |
| Nominal Energy | 4.09kWh | 8.19kWh | 5.12kWh | 10.24kWh |
| COM Mode | CAN | RS485/CAN | RS485/CAN/RS232 | RS485/CAN/RS232 |
| Life Cycle | ≥8000 cycles (80%DOD), at 25°C | ≥6000 cycles (80%DOD), at 25°C | ||
| Charge Voltage | 14.6V | 29.2V | 58.4V | 58.4V |
| Discharge Cut-off | 10.4V | 20.8V | 43V | 43V |
| Max. Current (C/D) | 250A | 220A | 100A | 200A |
| Peak Discharging | 300A (30s) | 300A (10s) | 150A (≤1s) | 240A (≤1s) |
| Dimensions (mm) | 360*310*160 | 360*430*235 | 19-inch 3u/4u | 19-inch 3.5u/4u |
| Weight | ≈ 32kg | ≈ 58kg | ≈ 47kg | ≈ 75kg |
